Product Overview

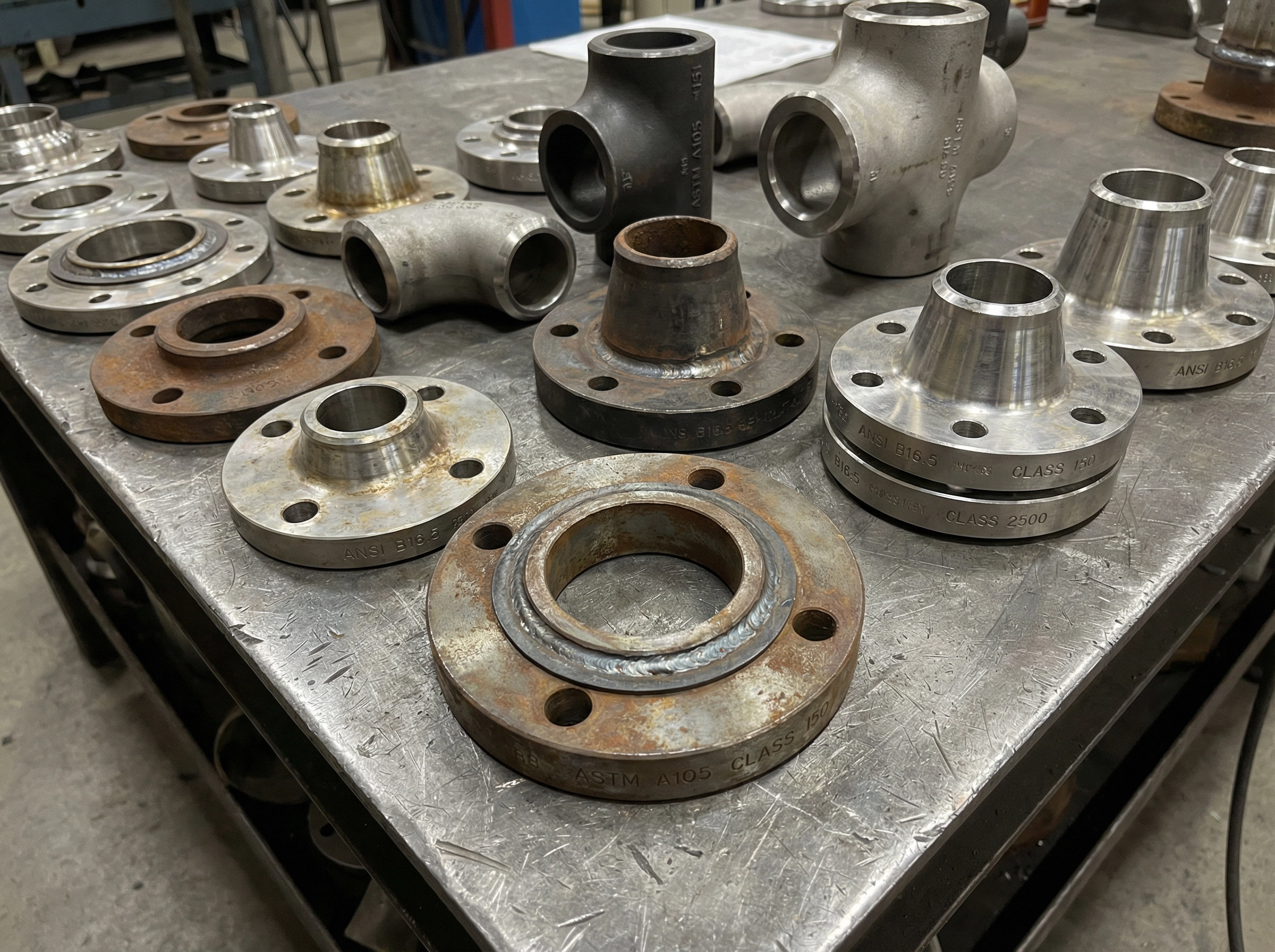

Our flanges and pipe fittings are precision-forged and machined to exacting tolerances, ensuring reliable, leak-free connections in demanding oil and gas service. We stock weld neck, slip-on, blind, socket weld, and lap joint flanges, plus a full range of butt-weld fittings in matching materials.
Key Specifications
Flanges: ANSI/ASME B16.5 (½"–24"), B16.47 Series A&B (26"–60"), MSS SP-44. Pressure classes: 150# to 2500#. Fittings: ASME B16.9 butt-weld, B16.11 socket-weld/threaded. Materials: ASTM A105 (CS), A182 F316L (SS), A694 (HSLA). Facing: RF, RTJ, FF. PMI testing available. Nace MR0175 compliant grades stocked.
Applications

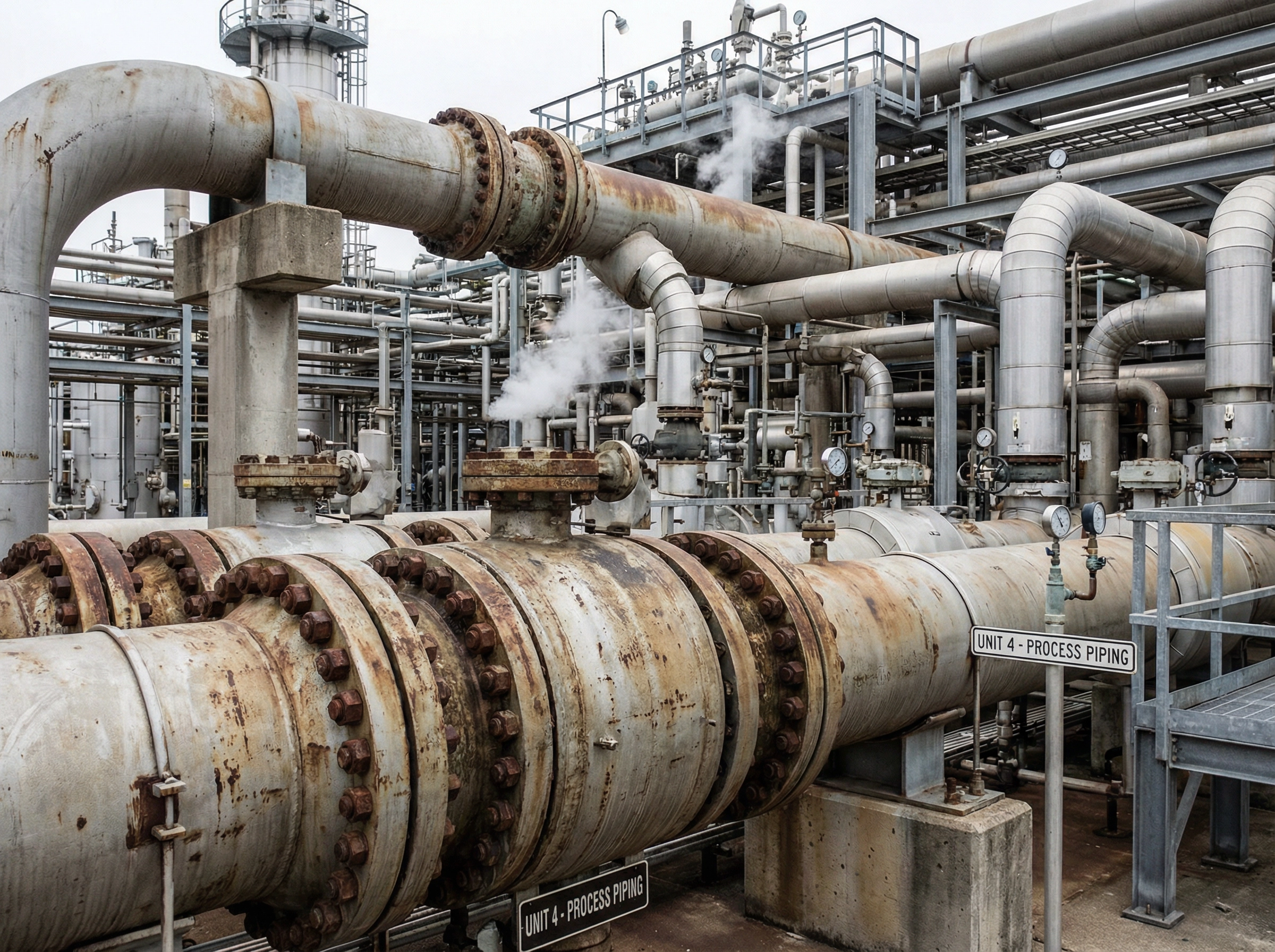

Process piping connections, pipeline manifolds, wellhead assemblies, heat exchanger nozzles, and pressure vessel connections. We supply complete flange management packages including gaskets, bolting, and installation torque specifications for critical service applications.
